In-House Manufacturing
Designed & built in North Yorkshire
Made in the UK
Proudly British manufactured
Since 1997
Over 25 years of expertise
BS EN 14175
Fully compliant & tested
Specification & Compliance
The K8 Walk-In is type tested to BS EN14175 and provides a greater working area for larger equipment and processes. We understand that everyone's requirements are different - as the design and build process is all in-house, you're not buying an off-the-shelf solution.
- Smooth radiused front profile for improved containment and aerodynamics
- Type tested to BS EN14175 @ 0.30m/sec to 0.50m/sec
- Inner chamber: 6mm Trespa TopLab BASE (PP and SS available)
- High performance removable back baffles for maintenance
- Removable service panels for taps, sockets and alarm panels
- Front by-pass grille - removable for access and maintenance
- TEL AFA4000/2 tactile and digital fully programmable airflow monitor
- 6mm toughened glass sash on twin stainless steel cables
- Curved aerodynamic sash handle with easy grip D handles
Standard Dimensions
| Dimension | Value |
|---|---|
| Standard Widths | 1000, 1200, 1500, 1800, 2000mm |
| Standard Depth | 1000mm |
| Standard Height | 2400mm |
| Sash Type | Vertical Rising |
| Lighting | LED Low Energy |
Extra Depth: The walk-in design features 1000mm depth (vs 900mm standard) for floor-standing equipment.
Optional Extras
Tailor your K8 Fume Cupboard to your specific laboratory requirements with our range of upgrades.
Ventilated Storage
Integrated storage for chemicals beneath the unit.
VAV Systems
Variable Air Volume control for energy efficiency.
Auto-Sash
Automatic sash closure for safety and energy saving.
Fire Trace
Automated fire suppression systems.
Material Upgrades
Polypropylene or Stainless Steel chambers.
Epoxy Worktops
Cast epoxy resin for extreme chemical resistance.

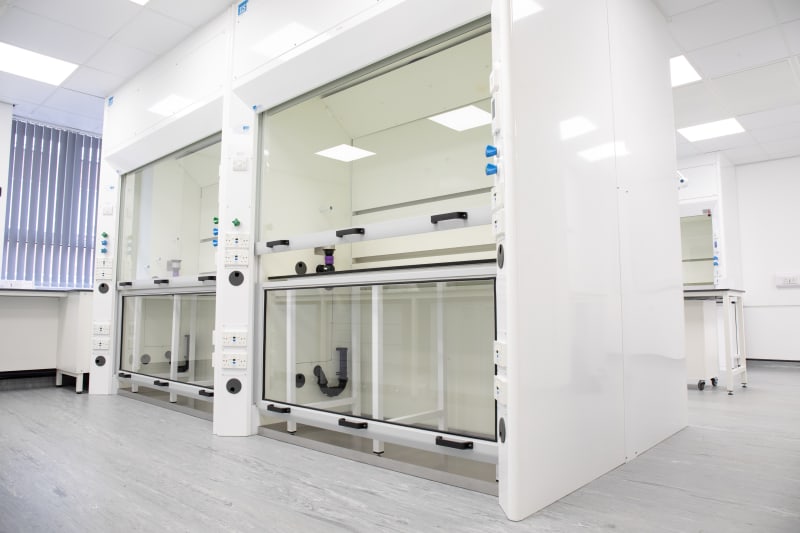

K8 Walk-In Installations
See our K8 Walk-In fume cupboards installed in laboratories across the UK.

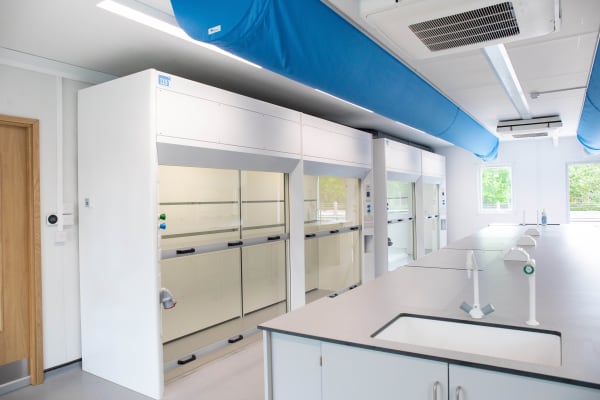

Double Fronted Walk-In Installation

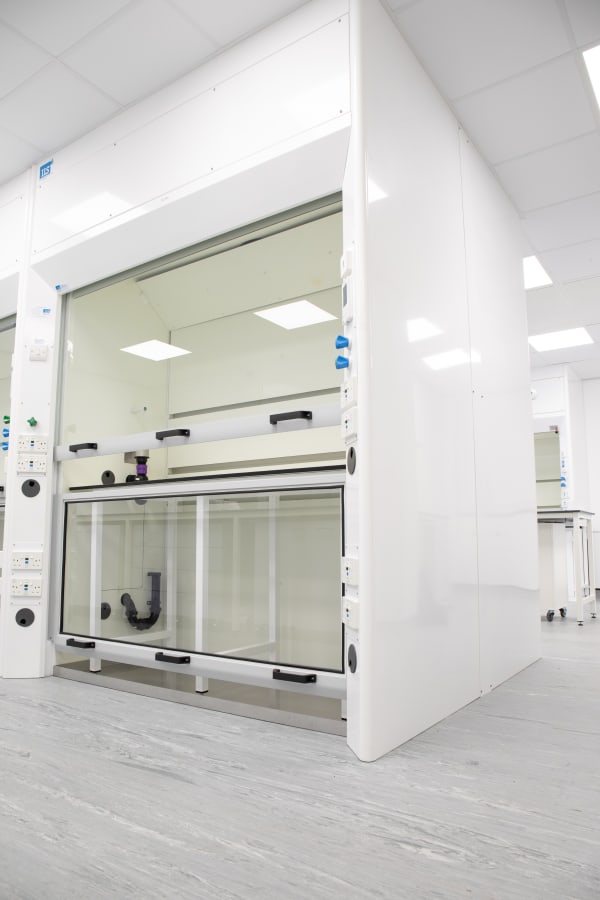

Walk-In Installation
Trusted by leading organisations across the UK
Trusted by Laboratories Nationwide
For over 25 years, we've been designing and manufacturing fume cupboards for universities, schools, and industrial laboratories across the UK.
"Over the past few years, as Cornish Lithium has expanded, ILS has been our go-to partner for fume cupboards. Having purchased five fume cupboards and integrated scrubber systems to date, we have consistently relied on their expertise to support our evolving operations. Their equipment is robust, reliable, and performs exceptionally well in a demanding environment. ILS has proven to be a trusted partner in our journey."
Martin Dunn
Laboratory Manager, Cornish Lithium
"We recently approached ILS to install a new fume cupboard as part of our lab refurbishment. From the initial site survey to the final commissioning, the process was incredibly efficient. The installation team worked around our schedule to ensure minimal disruption to our work."
Ben Rathbone
Laboratory Analyst, Tata Chemicals
"We engaged ILS to install two new fume cupboards at our Westland Growing Media Laboratory, a project that presented significant logistical challenges due to restricted roof access for the required ducting. The ILS team handled the complexity with total professionalism, ensuring the entire installation was performed in strict accordance with our site safety policies and height protocols. Despite the physical constraints of the building, the execution was flawless. Since the installation, the fume cupboards have been completely trouble-free, providing our team with a reliable and safe working environment."
Andrew Gerrard
Technical Laboratory Manager, Westland
Ready to Upgrade Your Laboratory?
Contact our team to discuss your fume cupboard requirements. We offer free site surveys and bespoke solutions.
The Process
We handle everything in-house in North Yorkshire, ensuring you aren't just buying an off-the-shelf solution.
1. Design
Every project starts in Solidworks. We issue fully dimensioned drawings for your approval before we cut a single piece of material.
2. Build
Manufactured in our modern North Yorkshire factory. Our team of skilled engineers and fabricators ensure the highest standards.
3. Install
Our own fitters deliver and install your fume cupboard anywhere in the UK, ensuring seamless integration.
Downloads & Resources
K8 Series Datasheet
Complete specifications for the K8 ducted fume cupboard range including Walk-In.
PDF • 3.0 MBK8 Walk-In GA Drawing
General arrangement drawing for 1500mm wide K8 walk-in fume cupboard.
PDF • 1.5 MBTEL AFA4000 Alarm Datasheet
Specifications for the AFA4000 fume cupboard airflow alarm.
PDF • 998 KBIndustrial Fume Cupboard FAQs
Common questions about our industrial and research fume cupboards
BS EN 14175 is the European standard for fume cupboard performance, covering containment, airflow, and safety. All our industrial fume cupboards are type-tested to this standard, ensuring they provide reliable protection for laboratory personnel working with hazardous substances.
Our K8 series industrial fume cupboards are available in standard widths of 1000mm, 1200mm, 1500mm, 1800mm, and 2000mm. We also manufacture bespoke sizes to fit your specific laboratory requirements.
Yes, all our K8 series fume cupboards can be configured with VAV technology. VAV systems automatically adjust extraction rates based on sash position, reducing energy consumption by up to 70% compared to constant volume systems.
We offer a range of worktop materials including Trespa TopLab BASE (our standard), stainless steel, polypropylene, and epoxy resin. The choice depends on the chemicals and processes you'll be working with.
Yes, we offer full turnkey installation across the UK. Our experienced team handles delivery, positioning, connection to extraction systems, and commissioning. We also provide LEV testing and certification.
As every fume cupboard is built to order in our North Yorkshire factory, typical lead times are 6-8 weeks from order confirmation. We can accommodate urgent requirements where possible.
All our fume cupboards come fitted with a TEL AFA4000 airflow monitor as standard. This provides visual and audible alarms if airflow drops below safe levels, with options for BMS integration.
Yes, our K8 Walk-In fume cupboard is designed for larger equipment and processes. It features full-height access with the same BS EN 14175 containment performance as our standard models.
Need a Walk-In Solution?
Whether you need a single unit or a full laboratory fit-out, our team in North Yorkshire is ready to help with your walk-in fume cupboard requirements.
